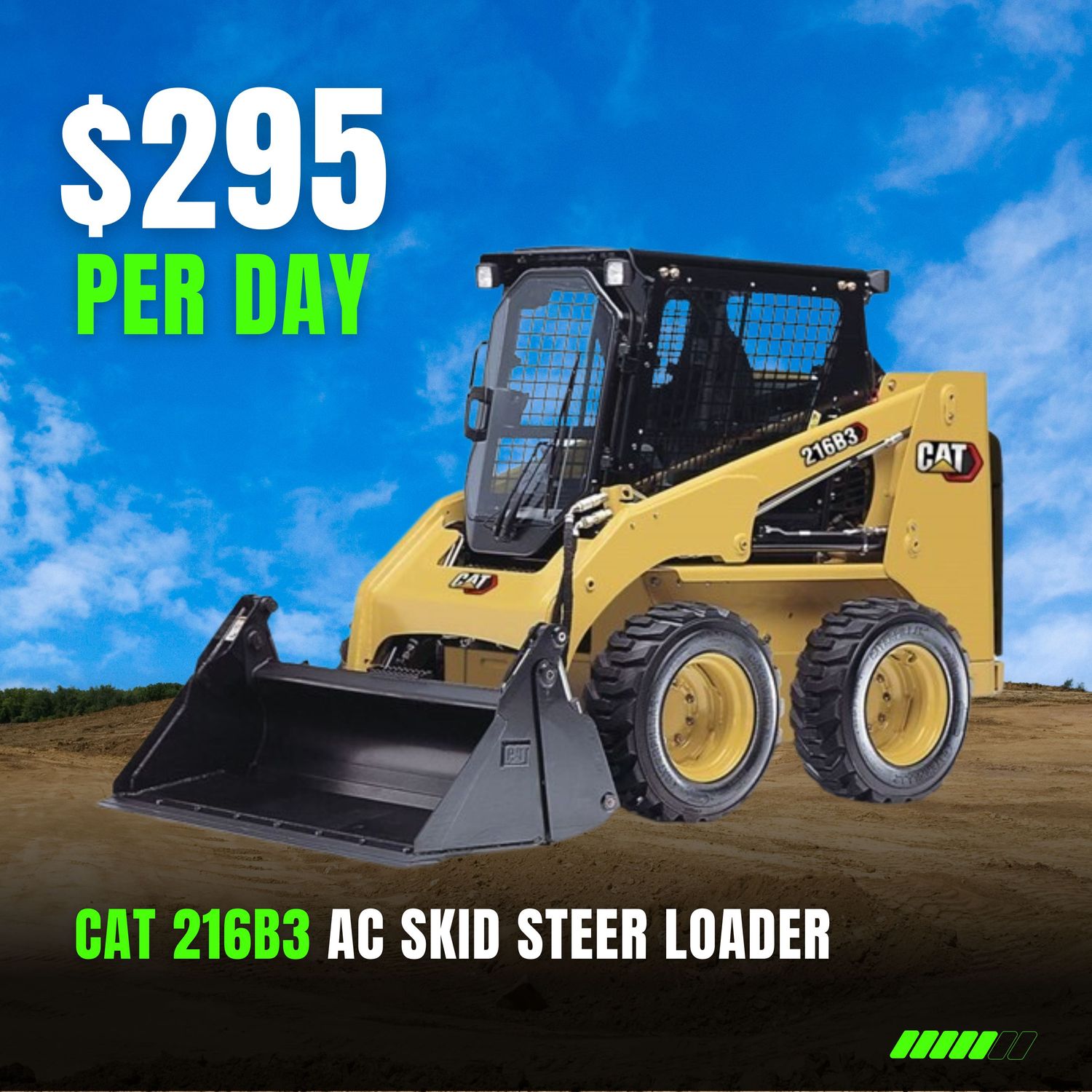

CAT 216B3 AC Skid Steer Loader

PHG-216B3-1
AU $325.00
In stock
1
Product Details

NEW 2022 CAT 216B3 Air Conditioned Skid Steer Loader

Price is per day (24h)

Excluding Delivery/Collection, Fuel, Cleaning & Damage Charges

Customers will be contacted on completion of online booking to confirm availability.

FULL SPECIFICATIONS STANDARD EQUIPMENT OPTIONAL EQUIPMENT

PRODUCT SPECIFICATIONS

ENGINE

Gross Power - SAE J1995 38 kW
Displacement 2.2 l
Stroke 100 mm
Bore 84 mm
Engine Model Cat C2.2
Net Power - SAE 1349/ISO 9249 35 kW

OPERATING SPECIFICATIONS

Rated Operating Capacity 635 kg
Tipping Load 1270 kg
Breakout Force - Tilt Cylinder 1852 kg
Rated Operating Capacity with Optional Counterweight 680 kg
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

WEIGHTS

Operating Weight 2581 kg
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

HYDRAULIC SYSTEM

Hydraulic Flow - Standard - Hydraulic Power (Calculated) 23.2 kW
Hydraulic Flow - Standard - Loader Hydraulic Pressure 23000 kPa
Hydraulic Flow - Standard - Loader Hydraulic Flow 61 l/min

CAB

ROPS SAE J1040 MAY94, ISO 3471:1994
FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
FOPS Level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II (optional)

SERVICE REFILL CAPACITIES

Chain Box - Each Side 6 l
Cooling System 10 l
Engine Crankcase 10 l
Fuel Tank 58 l
Hydraulic System 55 l
Hydraulic Tank 35 l

POWER TRAIN

Travel Speed - Forward or Reverse 12.7 km/h

DIMENSIONS

Wheel Base 986 mm
Length - With Bucket on Ground 3233 mm
Length - Without Bucket 2519 mm
Height - Top of Cab 1950 mm
Vehicle Width over Tires 1525 mm
Ground Clearance 195 mm
Departure Angle 26°
Maximum Dump Angle 40°
Bucket Pin Height - Maximum Lift 2854 mm
Reach - Maximum Lift/Dump 505 mm
Turn Radius from Center - Machine Rear 1502 mm
Bucket Pin Height - Carry Position 200 mm
Bumper Overhang - Behind Rear Axle 967 mm
Turn Radius from Center - Bucket 1944 mm
Turn Radius from Center - Coupler 1195 mm
Maximum Reach with Arms Parallel to Ground 1291 mm
Clearance at Maximum Lift and Dump 2169 mm
Maximum Overall Height 3709 mm
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height 81°
