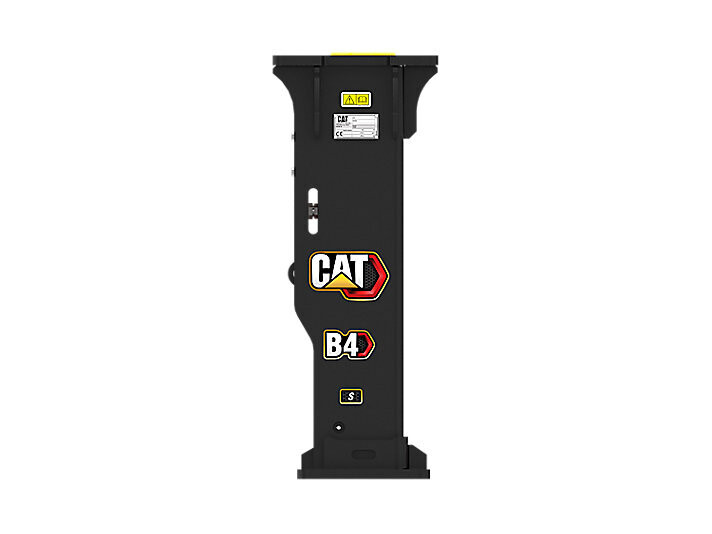

CAT Hydraulic Hammer B4 (for 216B3 Skid Steer)
Product Details
*CAT Hammer Attachement is available at a cost $255.00 per day hire when hiring our 216B3 Skid Steer
Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.
PRODUCT SPECIFICATIONS FOR B4S
| Operating Weight - With Tool | 357.1 lb |
| Energy Class | 272.9 ft·lbf |
| Machine Class | 2-5 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders |
| Tool Shaft Diameter | 2.1 in |
| Impact Frequency | 600-1100 bpm |
| Minimum Operating Pressure | 1491.9 psi |
| Minimum Carrier Weight | 5599.7 lb |
| Optimal Hydraulic Flow | 25-50 lpm (6.6-13.2 gpm) |
| Overall Width | 11.8 in |
| Overall Length | 13.4 in |
| Overall Height | 47 in |
| Height - Without Tool | 34.1 in |
| Sound Level | 124 dB |
| Mounting Bracket Size | Small-Medium |
