*PRICE MATCH GUARANTEE*
| 4 HOUR RATE | 24 HOUR RATE | 7 DAY RATE |
| $395.00 | $395.00 | $1550.00 |
Price is per Day (24hr)
Daily Rate includes GST
Customers will be contacted on completion of online booking to confirm availability.
7 Day Weekly rate available on request
Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447
| Terms & Conditions *All Boom Lifts require a $400.00 Security Bond *Security Bond will Refunded on completion of Hire, after Boom Lift has been inspected and No Damage has occurred *Charges will apply for all damages to equipment/vehicles *All Boom Lifts must be refueled on return if required *Cleaning Fee may apply if Boom Lift is returned in an unsatisfactory condition |
ITEMS INCLUDED
*46ft (16M) BOOM LIFT
ITEMS EXCLUDED
*CLEANING FEES
*ANY DAMAGE CHARGES
*DELIVERY / PICK UP COSTS

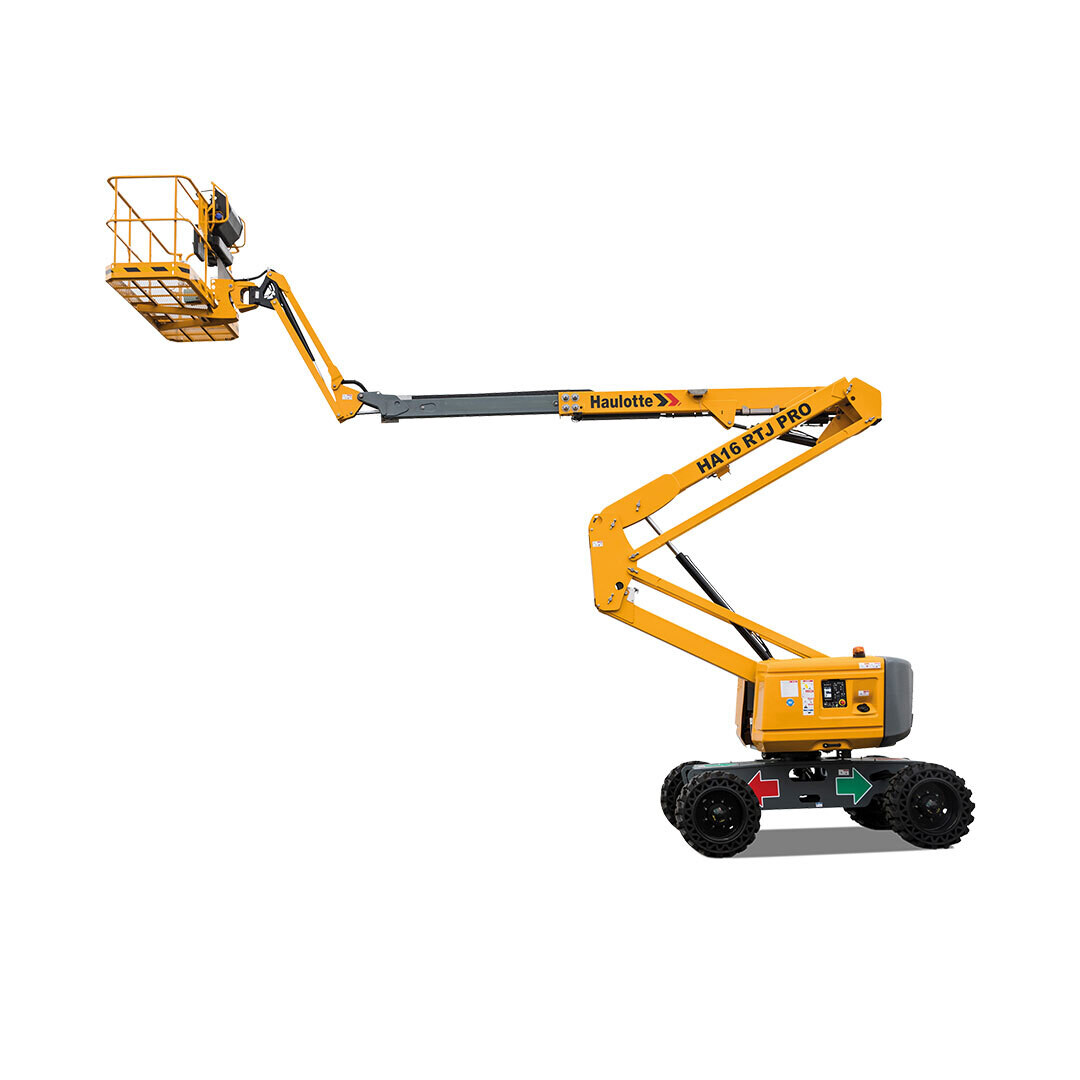

Rough Terrain Diesel Articulating Booms -HA16 RTJ PRO
- Performance & ease of use
- Industry leading working envelope with an outreach of 8.3 m
- Best lifting speed of 40 sec
- Fully proportional and simultaneous movements
- 4-wheel steer and 360° continuous rotation for a greater productivity
- Best Comfort and Safety Feeling
| Working height | 16 m |
| Platform height | 14 m |
| Horizontal outreach | 8.3 m |
| Up and over clearance | 7.65 m |
| Lift capacity | 230 kg (2 pers.) |
| Platform size | 1.83 x 0.80 m |
| Length - stowed | 6.75 m |
| Width | 2.3 m |
| Height - stowed | 2.3 m |
| Vertical jib rotation | 140° (- 80° / + 60°) |
| Platform rotation | 165° (- 75° / + 90°) |
| Turntable rotation | 360° continuous |
| Tailswing | 10 cm |
| Wheelbase | 2.1 m |
| Ground clearance | 37 cm |
| Tilt | 5 ° |
| Drive speed | 5.2 km/h |
| Gradeability | 40 % |
| Turning radius - outside | 3.75 m |
| Power source | Kubota / Perkins, 18.5 kW (Stage 5 in EU) - Kubota, 26.5 kW, (Stage 3A in NRC) |
| Weight | 6 540 kg |
| Storage / transport length | 5.05 m |
| Storage / transport height | 2.4 m |
| Tyres - solid rough terrain | 830 x 285 mm |
| Maximum wind speed rating | 45 km/h |
| Ground clearance - mini | 0 m |
| Ground clearance - maxi | 0 m |
