*SPRING PROMOTION*
DAILY RATE OF $225.00 INCLUDES GST
Customers will be contacted on completion of online booking to confirm availability.
7 Day Weekly rate available on request
2 Tonne towing capacity required.
Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447
| Terms & Conditions *All Scissor Lifts require a $300.00 Security Bond *Security Bond will Refunded on completion of Hire, after Scissor Lift has been inspected and No Damage has occurred *Charges will apply for all damages to equipment/vehicles *All Scissor Lifts must be refueled on return if required *Cleaning Fee may apply if Scissor lift is returned in an unsatisfactory condition |
ITEMS INCLUDED
*19ft ELECTRIC SCISSOR LIFT
*TRAILER
ITEMS EXCLUDED
*CLEANING FEES
*ANY DAMAGE CHARGES
*DELIVERY / PICK UP COSTS

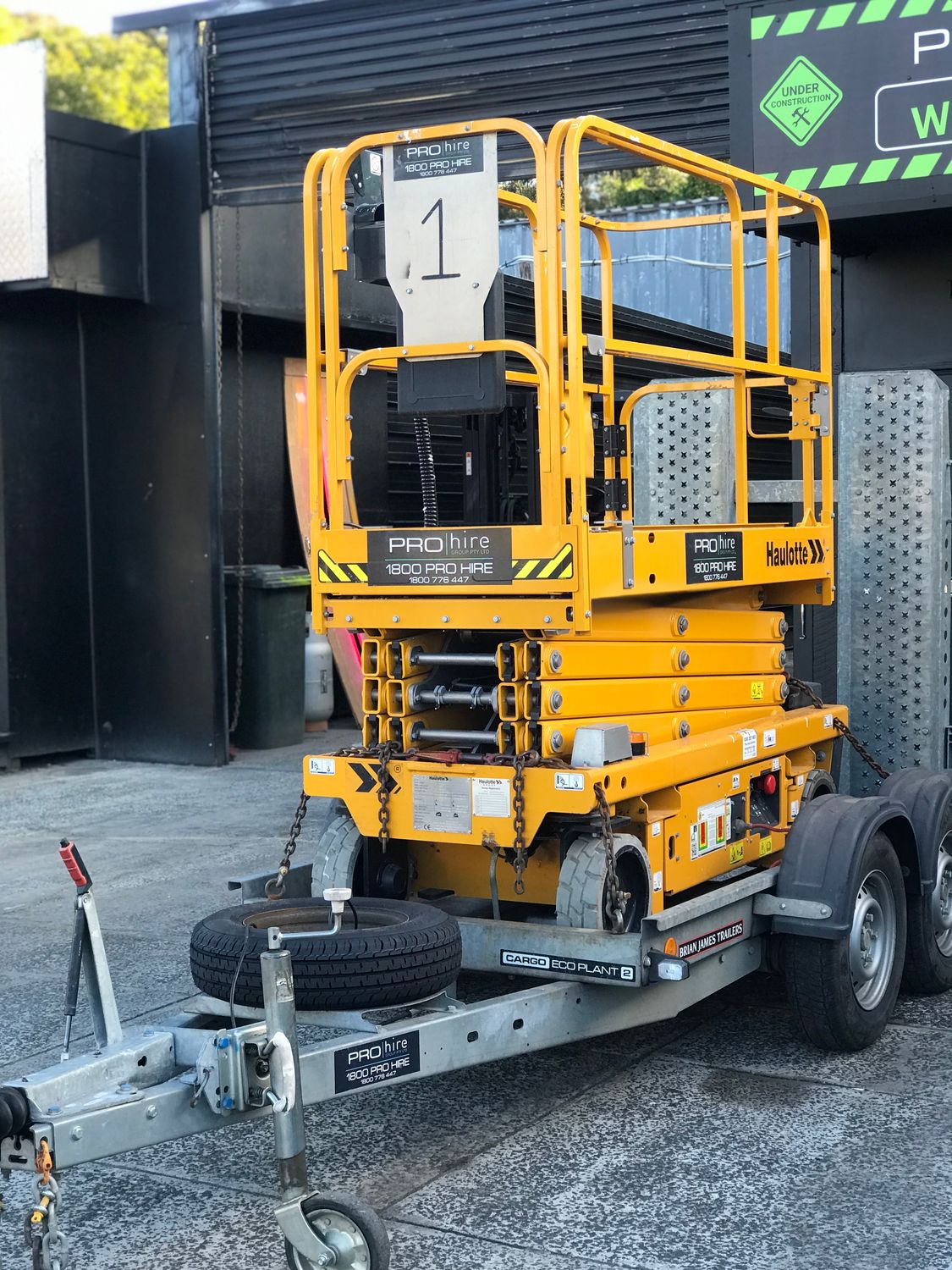

COMBO - 19ft Electric Scissor Lift & Trailer.
Our Haulotte Optimum 8 Scissor Lift is AC battery powered, High precision driving, Self propelled elevated work platform. The narrow width allows access through a standard doorway.
| Working height | 7.77 m |
| Platform height | 5.77 m |
| Platform length - outside | 1.72 m |
| Platform length - extended | 2.59 m |
| Length - extension | 0.86 m |
| Platform width - outside | 0.74 m |
| Height - stowed | 1.98 m |
| Overall width | 0.79 m |
| Length | 1.9 m |
| Wheelbase | 1.38 m |
| Ground clearance - center | 8.7 cm |
| Ground clearance - deployed potholes | 2 cm |
| Drive speed | 0.5 - 4.5 km/h |
| Max. drive working height | 5.77 m |
| Gradeability | 25 % |
| Tilt | 1.5° / 3° |
| Turning radius - outside | 1.5 m |
| Non-marking tyres | 12.5 x 4.13 |
| Batteries | 24 V - 225 Ah |
| Hydraulic system capacity | 7 l |
| Weight | 1 590 kg |
| Platform size - extended | 2.59 x 0.74 m |
| Lift capacity - inside | 230 kg (2 pers.) |
| Lift capacity - outside | 230 kg (1 pers.) |
| Lift capacity on the extension deck | 120 kg |
| Length - extension XL option | 0 m |
OPTIMUM 8 - DATASHEET AU
