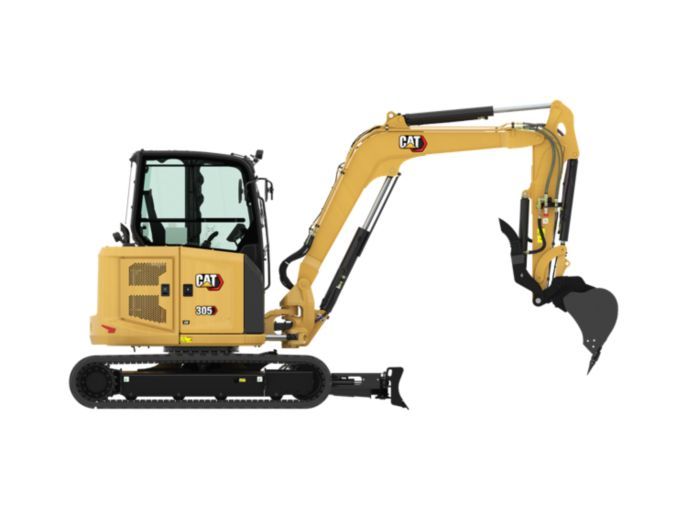

CAT 305 CR (5T) Hydraulic Excavator with Hydraulic Thumb Grab (#EM0022)
Product Details
PRICE MATCH GUARANTEE
4 HOUR RATE
24 HOUR RATE
7 DAY RATE
$495.00
$495.00
$1980.00 ($283 per day)
Price includes GST
Customers will be contacted on completion of online booking to confirm availability.
Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447
ITEMS INCLUDED
- 5T EXCAVATOR
- 300mm BUCKET
- 450mm BUCKET
- 1000mm BUCKET
- 1200mm MUD BUCKET
ITEMS EXCLUDED
- TRAILER
- FUEL COSTS
- CLEANING FEES
- ANY DAMAGE CHARGES
- DELIVERY / PICK UP COSTS
EXTRA ITEMS AVAILABLE ON REQUEST
- AUGER DRIVE ATTACHMENT
- AUGER DRIVE DRILL BIT (305mm or 457mm or 610mm)
- AUGER DRIVE EXTENSION BAR (1800mm)
- HAMMER/BREAKER ATTACHMENT
- RIPPER
- SIEVE BUCKET 980mm
| Terms & Conditions *All Excavators require a $400.00 Security Bond *Security Bond will Refunded on completion of Hire, after Excavator has been inspected and No Damage has occurred *Charges will apply for all damages to equipment/vehicles *All Excavators must be refueled on return *Cleaning Fee may apply if Excavator is returned in an unsatisfactory condition |
CAT 305 CR (5T) Hydraulic Excavator with Hydraulic Thumb Grab
The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
SPECIFICATIONS
| Net Power | 33.6 kW |
| Engine Model | C1.7 Turbo |
| Displacement | 1.662 l |
| Gross Power - 2,400 rpm - SAE J1995:2014 | 36.1 kW |
| Stroke | 100 mm |
| Bore | 84 mm |
| Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC | 33.6 kW |
| Note | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards. |
Weights
| Operating Weight | 5754 kg |
| Note (2) | **Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket. |
| Minimum Operating Weight with Cab* | 5105 kg |
| Note (1) | *Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight. |
| Minimum Operating Weight with Canopy* | 5006 kg |
| Maximum Operating Weight with Canopy** | 5665 kg |
| Maximum Operating Weight with Cab** | 5764 kg |
Dimensions - Long Stick
| Dig Depth | 3670 mm |
| Maximum Reach | 5990 mm |
| O/A Shipping Height | 2550 mm |
| Vertical Wall | 2560 mm |
| Track Width | 1980 mm |
| Overall Shipping Length* | 5340 mm |
| Maximum Dump Clearance | 3845 mm |
| Tail Swing with Counterweight | 1200 mm |
| Boom Swing - Right | 865 mm |
| Boom Swing - Left | 24.2 ° |
| Tail Swing without Counterweight | 1095 mm |
| Track Belt/Shoe Width | 400 mm |
| Maximum Reach - Ground Level | 5835 mm |
| Stick Length | 1601 mm |
| Swing Bearing - Height | 619 mm |
| O/A Undercarriage Length | 2580 mm |
| Boom In Reach | 2580 mm |
| Maximum Blade Depth | 650 mm |
| Maximum Blade Height | 400 mm |
| Maximum Dig Height | 5355 mm |
| Boom Height - Shipping Position | 1895 mm |
| Note | *Overall Shipping Length depends on blade position during shipment. |
| Ground Clearance | 335 mm |
Service Refill Capacities
| Hydraulic Tank | 60 l |
| Engine Oil | 6 l |
| Hydraulic System | 75 l |
| Fuel Tank | 68 l |
| Cooling System | 11 l |
Swing System
| Boom Swing - Left | 72 Degrees |
| Machine Swing Speed | 9 r/min |
| Boom Swing - Right | 50 Degrees |
Hydraulic System
| Digging Force - Bucket | 49.2 kN |
| Auxiliary Circuit - Secondary - Pressure | 265 bar |
| Operating Pressure - Equipment | 265 bar |
| Auxiliary Circuit - Secondary - Flow | 28 l/min |
| Operating Pressure - Travel | 265 bar |
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Digging Force - Stick - Standard | 28.3 kN |
| Auxiliary Circuit - Primary - Pressure | 265 bar |
| Note | Flow and pressure are not combinable. Under load, as flow rises pressure goes down. |
| Pump Flow at 2,400 rpm | 133 l/min |
| Auxiliary Circuit - Primary - Flow | 80 l/min |
| Operating Pressure - Swing | 200 bar |
| Digging Force - Stick - Long | 25.2 kN |
Dimensions - Standard Stick
| Tail Swing without Counterweight | 1095 mm |
| Boom Swing - Left | 615 mm |
| Boom Swing - Right | 865 mm |
| Maximum Dig Height | 5215 mm |
| Vertical Wall | 2335 mm |
| Maximum Blade Height | 400 mm |
| Swing Bearing - Height | 619 mm |
| Boom Height - Shipping Position | 1820 mm |
| Overall Shipping Length* | 5305 mm |
| O/A Shipping Height | 2550 mm |
| Dig Depth | 3420 mm |
| Maximum Reach - Ground Level | 5590 mm |
| Maximum Dump Clearance | 3700 mm |
| Maximum Reach | 5755 mm |
| Boom In Reach | 2570 mm |
| Maximum Blade Depth | 650 mm |
| Note | *Overall Shipping Length depends on blade position during shipment. |
| O/A Undercarriage Length | 2580 mm |
| Track Belt/Shoe Width | 400 mm |
| Stick Length | 1351 mm |
| Tail Swing with Counterweight | 1200 mm |
| Ground Clearance | 335 mm |
Travel System
| Maximum Traction Force - High Speed | 24.7 kN |
| Travel Speed - High | 5 km/h |
| Travel Speed - Low | 2.8 km/h |
| Ground Pressure - Maximum Weight | 32.2 kPa |
| Gradeability - Maximum | 30 degrees |
| Ground Pressure - Minimum Weight | 27.3 kPa |
| Maximum Traction Force - Low Speed | 50.5 kN |
Weight Increase from Minimum Configuration
| Counterweight | 242 kg |
| Angle Blade | 92 kg |
| Long Stick | 34 kg |
| Steel Tracks with Pads | 375 kg |
Blade
| Angle Blade - Right | 25 degrees |
| Angle Blade Width | 1980 mm |
| Angle Blade Height | 400 mm |
| Straight Blade Width | 1980 mm |
| Straight Blade Height | 390 mm |
| Angle Blade - Left | 25 degrees |
Certification - Cab and Canopy
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Top Guard | ISO 10262:1998 Level I |
Sound
| Operator Sound Pressure (ISO 6396:2008) | 76 dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 97 dB(A) |
| Note | European Union Directive "2000/14/EC" |
Sustainability
| Recyclability | 96% |
