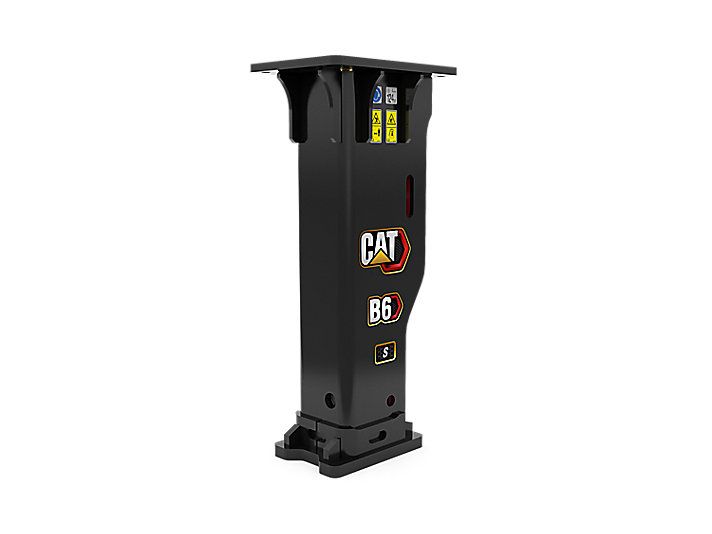

CAT Hydraulic Hammer (B6S) - used with 5T - 6T Excavator

Product Details

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

PRODUCT SPECIFICATIONS FOR B6S

Operating Weight - With Tool	610.70 lb
Energy Class	272.9 ft·lbf
Machine Class	4-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
Tool Shaft Diameter	2.70 in
Impact Frequency	500-900 bpm
Minimum Operating Pressure	1775.00 psi
Minimum Carrier Weight	8000.60 lb
Optimal Hydraulic Flow	40-70 lpm (10.6-18.5 gpm)
Overall Width	12.40 in
Overall Length	17.30 in
Overall Height	53.90 in
Height - Without Tool	39.10 in
Sound Level	124 dB
Mounting Bracket Size	Large
