PRICE MATCH GUARANTEE
| 4 HOUR RATE | 24 HOUR RATE | 7 DAY RATE |
| $395.00 | $395.00 | $ |
Price is per day (24h)
Customers will be contacted on completion of online booking to confirm availability.
Please Note:- Delivery &/or Pick Up can be arranged for an extra Fee. Call for quote on 1800 776 447
ITEMS INCLUDED
- CAT 216B3 SKID STEER LOADER
ITEMS EXCLUDED
- TRAILER $95 per day
- FUEL COSTS
- CLEANING FEES
- ANY DAMAGE CHARGES
- DELIVERY / PICK UP COSTS
EXTRA ITEMS AVAILABLE ON REQUEST
- AUGER DRIVE ATTACHMENT
- AUGER DRIVE DRILL BIT (230mm Or 305mm OR 457mm )
- 2.5T FORKLIFT TYNE ATTACHMENT
- HAMMER/BREAKER
| Terms & Conditions *All Skid Steer Loaders require a $400.00 Security Bond *Security Bond will be Refunded on completion of Hire, after Skid Steer Loader has been inspected and No Damage has occurred *Charges will apply for all damages to equipment/vehicles *All Skid Steer Loaders must be refueled on return *Cleaning Fee may apply if Skid Steer Loader is returned in an unsatisfactory condition |

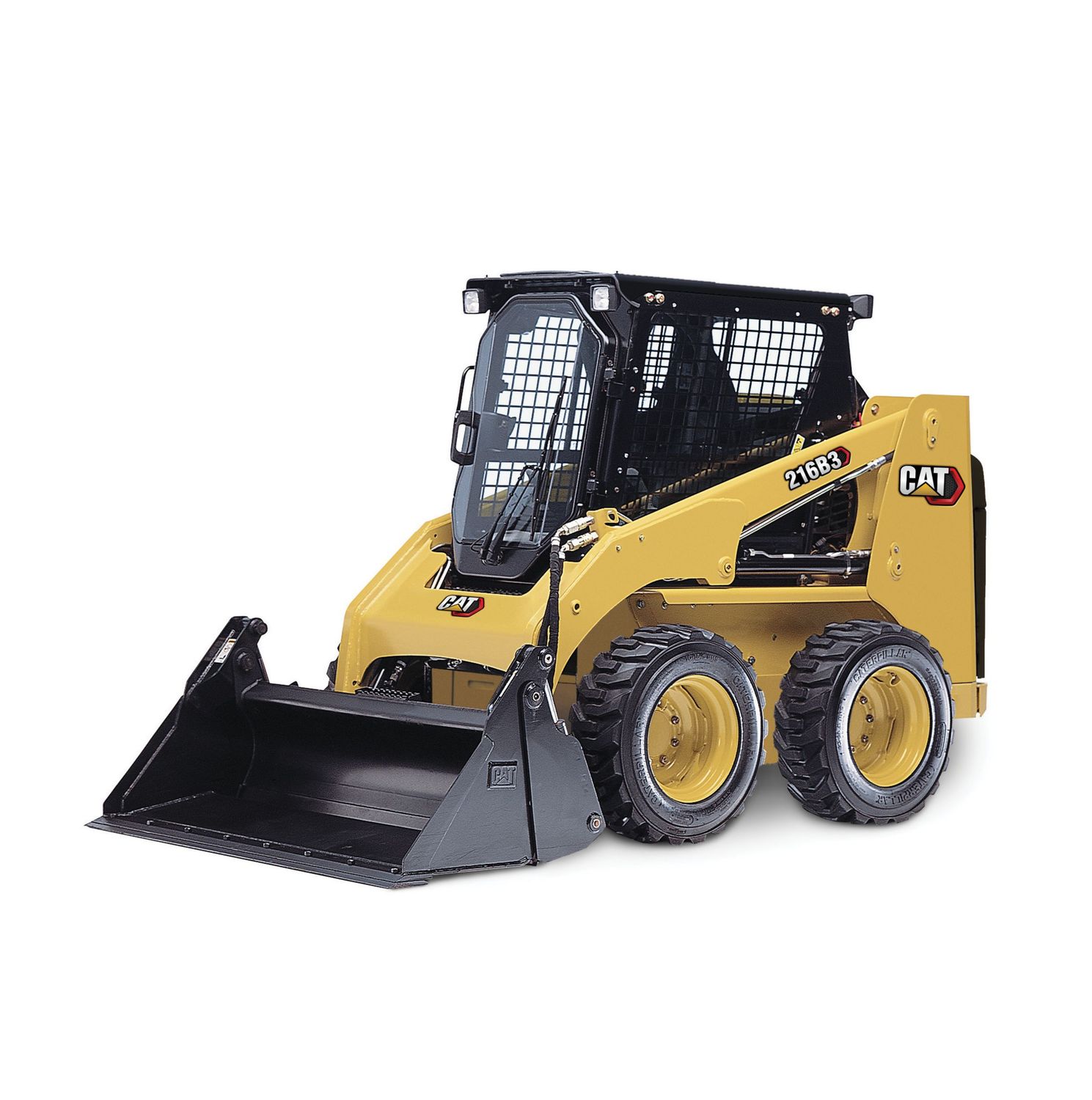

CAT 216B3 (#EM019) AC Skid Steer Loader
Key Features
- Ergonomic operator station features easy to use pilot operated joystick controls for reduced operator fatigue and increased productivity.
- High performance power train provides high engine horsepower and torque, allowing part-throttle operation for lower sound levels and fuel consumption.
- Advanced hydraulic system is designed for maximum power and reliability.
- Easy routine maintenance helps reduce machine downtime for greater productivity.
- Cat Work Tools - Broad range of performance matched Cat Work Tools make the Cat Skid Steer Loader the most versatile machine on the job site.
SPECIFICATIONS
Dimensions
Wheel Base - 986 mm
Length - With Bucket on Ground - 3233 mm
Length - Without Bucket - 2519 mm
Height - Top of Cab - 1950 mm
Vehicle Width over Tires - 1525 mm
Ground Clearance - 195 mm
Departure Angle - 26°
Maximum Dump Angle - 40°
Bucket Pin Height - Maximum Lift - 2854 mm
Reach - Maximum Lift/Dump - 505 mm
Turn Radius from Center - Machine Rear - 1502 mm
Bucket Pin Height - Carry Position - 200 mm
Bumper Overhang - Behind Rear Axle - 967 mm
Turn Radius from Center - Bucket - 1944 mm
Turn Radius from Center - Coupler - 1195 mm
Maximum Reach with Arms Parallel to Ground - 1291 mm
Clearance at Maximum Lift and Dump - 2169 mm
Maximum Overall Height - 3709 mm
Note - Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height - 81°
Engine
Gross Power - SAE J1995:2014 - 51 hp38 kW
Displacement - 134 in³2.2 l
Stroke - 3.9 in100 mm
Bore - 3.3 in84 mm
Engine Model - Cat C2.2
Net Power - SAE 1349/ISO 9249 - 47 hp35 kW
Operating Specifications
Rated Operating Capacity - 1400 lb635 kg
Tipping Load - 2800 lb1270 kg
Breakout Force - Tilt Cylinder - 4083 lb1852 kg
Rated Operating Capacity with Optional Counterweight - 1500 lb680 kg
Note - Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Weights
Operating Weight - 5690 lb2581 kg
Note - Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).
Hydraulic System
Hydraulic Flow - Standard - Hydraulic Power (Calculated) - 31.1 hp23.2 kW
Hydraulic Flow - Standard - Loader Hydraulic Pressure - 3335 psi23000 kPa
Hydraulic Flow - Standard - Loader Hydraulic Flow - 16 gpm61 L/min
Cab
ROPS - SAE J1040 MAY94, ISO 3471:1994
FOPS - SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
FOPS Level II - SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II (optional)
Service Refill Capacities
Chain Box - Each Side - 1.6 gal (US)6 l
Cooling System - 2.6 gal (US)10 l
Engine Crankcase - 2.6 gal (US)10 l
Fuel Tank - 15.4 gal (US)58 l
Hydraulic System - 14.5 gal (US)55 l
Hydraulic Tank - 9.2 gal (US)35 l
Power Train
Travel Speed - Forward or Reverse - 7.9 mile/h12.7 km/h
