| 4 HOUR RATE | 24 HOUR RATE | 7 DAY RATE |
| $175 | $175 | $700 |
Customers will be contacted on completion of online booking to confirm availability.
7 Day Weekly rate available on request
2 Tonne towing capacity required.
Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447
| Terms & Conditions *All Scissor Lifts require a $300.00 Security Bond *Security Bond will Refunded on completion of Hire, after Scissor Lift has been inspected and No Damage has occurred *Charges will apply for all damages to equipment/vehicles *All Scissor Lifts must be refueled on return if required *Cleaning Fee may apply if Scissor lift is returned in an unsatisfactory condition |
ITEMS INCLUDED
*19ft ELECTRIC MICRO SCISSOR LIFT
ITEMS EXCLUDED
*TRAILER
*CLEANING FEES
*ANY DAMAGE CHARGES
*DELIVERY / PICK UP COSTS

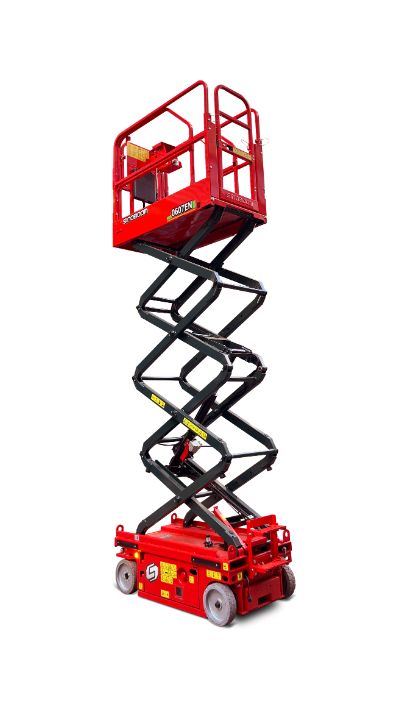

Electric MICRO Scissor Lifts
SINOBOOM 0607EN
Product Details
Our Electric Micro Scissor Lift is AC battery powered, High precision driving, Self propelled elevated work platform. The narrow width allows access through a standard doorway.
PRODUCT HIGHLIGHTS
Reliable Quality
â– The scissor stack is strengthened and widened, with 50% increase in width, making for more stable lifting and lowering at height
â– Upgraded large tires, strong power, waterproof and moisture-proof
Flexible Operation
â– Compact overall design, light weight, large load capacity, flexible movement, can enter and travel in elevators
â– Under 2m total height, and able to pass through standard doorways without folding the guardrails
Convenient Maintenance
â– Modular design, high versatility of parts
â– Widescreen HMI display for intelligent and efficient fault diagnosis and troubleshooting
DIMENSIONS
Max Working Height - 7.55 m / 6.6 m(Indoor/Outdoor)
[A] Max Platform Height - 5.55 m / 4.6 m(Indoor/Outdoor)
[B] Max Horizontal Extension - 0.6 m
[C] Length-Stowed - 1.58 m
[D] Width-Stowed - 0.78 m
Height - stowed Rail Folded - 1.63 m
[E] Height - stowed Rail Unfolded - 1.99 m
Height - stowed Fixed Rail -
[F] Wheelbase - 1.14 m
Ground Clearance(Pothole Guard Stowed) - 0.061 m
Ground Clearance(Pothole Guard Deployed) - 0.02 m
Platform Dimensions(L×W×H) - 1.41 m×0.76 m×1.1 m
PERFORMANCE
Platform Allowable Occupants(Indoor/Outdoor) - 2 Persons/1 Person
Platform capacity - 230 kg
Lift Extension Capacity - 120 kg
Drive Speed-Stowed - 0～4.0 km/h
Drive Speed-Raised - 0～0.5 km/h
Elevation Time(Unloaded) - 24 s~28 s
Descent Time(Unloaded) - 26 s~30 s
Gradeability - 25%
Turning Radius(Inside/Outside) - 0.1 m / 1.48 m
Tilt Rating(Front to Back/Side to Side) - 3°/1.5°
Tyres-solid - 280×76 mm/solid
POWER
Batteries - 24 V, 120 Ah, 20 hr (Lead-acid battery)
Power Source - 24 V DC, 2.2 kW
Drive Mode - 24 V DC/0.4 kW
Charger Input - 100～240 V AC
Charger Output - 15A
Hydraulic System Capacity - 4 L (0.9 gal (UK)/1.05 gal (US))
Weight(Indoor/Outdoor) - 1,100 kg
Weight(Indoor Only) -
Standards Compliance - CE/ANSI/CSA/AS/EAC
PRODUCT BROCHURE
