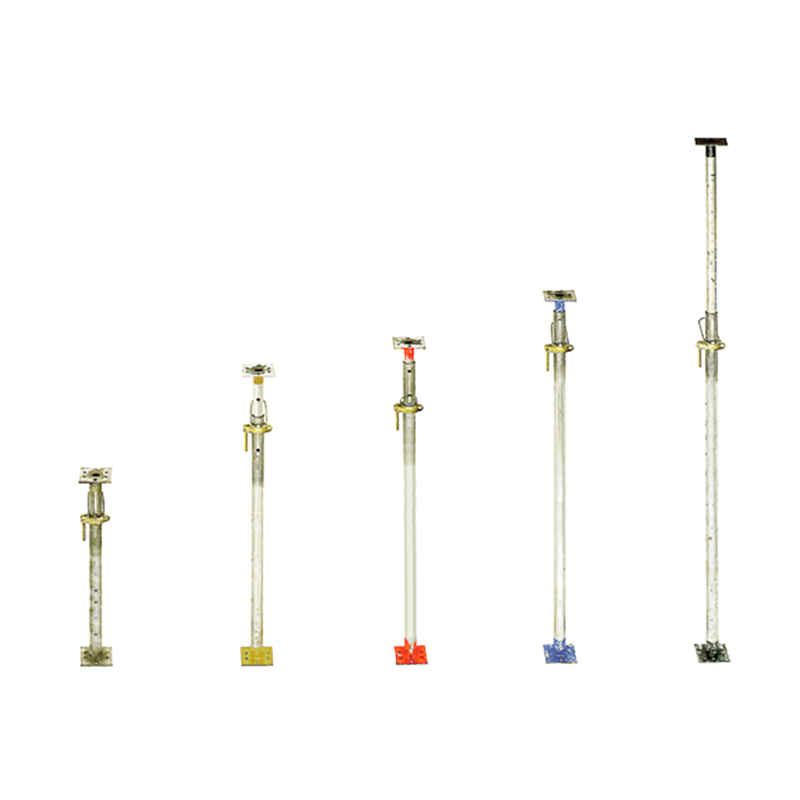

Props No2 - Steel Gal Acrow Supports 1.98m - 3.35m
Product Details
Weight:
21.83 kg
| 4 HOUR RATE | 24 HOUR RATE | 7 DAY RATE |
| $22.00 each |
Price includes GST
Customers will be contacted on completion of online booking to confirm availability.
ITEMS INCLUDED
- ACROW PROP
ITEMS EXCLUDED
- CLEANING FEES
- ANY DAMAGE CHARGES
- DELIVERY / PICK UP COSTS
| Terms & Conditions *All items require a $200.00 Security Bond *Security Bond will be Refunded on completion of Hire, after item has been inspected and No Damage has occurred *Charges will apply for all damages to equipment/vehicles *Cleaning Fee may apply if item is returned in an unsatisfactory condition |
Please Note: Price is based on a 7day weekly rate.
Description
- Industrial grade Formwork Prop.
- Deal method of support for formwork, columns, beams, and walls.
- Made with prime quality raw materials.
- Props nut that cleans itself
- All come complete with a locking G pin.
- Designed for easy stacking.
- At welding and threading process are completed prior to the Prop being hot-dipped.
Prop Specifications as per AS/NZS 3610:1995
| Code | Size (Close – Open) | Weight | WLL CLOSED | WLL OPENED |
|---|---|---|---|---|
| STUMPER | 0.45M x 0.70M | 9.31 kg | 51KN | 46.2KN |
| 00 | 0.69m x 1.16m | 10.75 kg | 40KN | 30KN |
| 0 | 1.07m x 1.82m | 14.41 kg | 26KN | 19KN |
| 1 | 1.60M x 2.80M | 20.78 kg | 24KN | 13KN |
| 2 | 1.98m x 3.35m | 21.83 kg | 24KN | 13KN |
| 3 | 2.59m x 3.95m | 24.61 kg | 21KN | 13KN |
| 4 | 3.2m x 4.87m | 29.54 kg | 18KN | 7KN |
