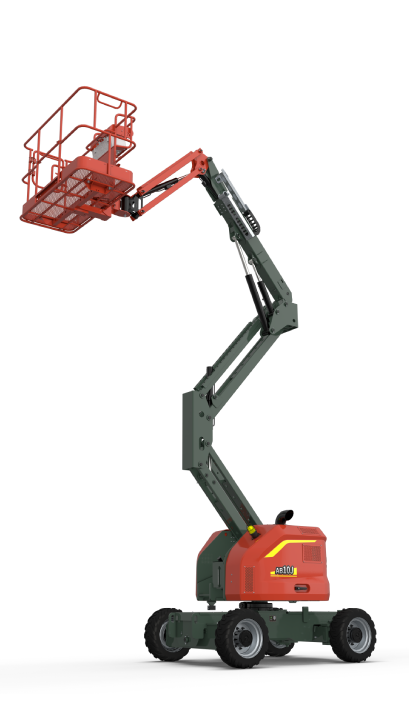

Knuckle Boom Lift #14- 34FT (12.38m) RT Diesel (Sinoboom AB10J)

Engine Powered Articulated Boom Lifts

Working Height 12.38m

Platform Capacity 250kg

Gradeability 40%

Product Highlights

• Excellent Rough Terrain Performance

  ■ The machine features great rough terrain performance thanks to its active oscillating function, combined with4 wheel drive, 40% gradeability and high ground clearance makingit easilyadaptive to both indoor and outdoor applications

• Large Platform Capacity

  ■ Two persons with tools can be easily loaded inthe platform to complete jobs efficiently by its leading platfo m capacity up to 250 kg

• Easy Transport

  ■ It can be easily loaded on trucks and transport in cities because of its light weigh less than 5 tons, and less limitation forsome special projects

• Greater Tilt Rating

  ■ The machine can be easily adaptive to terrains where requires greater tilt rating and help to boost work efficiency

• Ultimate HMl Experience

  ■ Easy trouble shooting, manuals free. One button for fault inquiry, and all faults will be displayed on the screen without codes, easily readable to
  minimize downtime
  ■ Easy calibration, tools free. Additional tools are not needed for calibration, all are in the screen

Dimensions

• Max Platform Height - 10.38 m (34'1")

• Max Working Height - 12.38 m (40'7")

• Max Horizontal Extension - 5.9 m (19'4")

• [A] Length-Stowed - 5.52 m (18'1'')

• [B] Width-Stowed - 1.85 m (6'1")

• [C] Height-Stowed - 1.85 m (6'1")

• [D] Wheelbase - 1.88 m (6'2")

• Ground Clearance - 0.28 m (11")

• Platform Dimensions(L×W×H) - 1.45 m×0.85 m×1.1 m (57.1"×33.5"×43.3")


•
•
•

Performance

• Platform Capacity
  (Unrestricted/2 Persons) - 250 kg (551 lbs)

• Turntable Rotation - 355 °non-continuous

• Platform Rotation - 160°

• Drive Speed-Stowed - 0 ～ 5 km/h (0 ～ 3.1 mph)

• Drive Speed-Raised - 0 ～ 0.8 km/h (0 ～ 0.5 mph)

• Gradeability - 40%

• Turning Radius-Inside - 1.5 m ((4'11")

• Turning Radius-Outside - 3.9 m (12'10")

• Turntable Tailswing - 0 m

• Tilt Rating - 3° / 4.5°

• Max Operating Noise Level

• Drive×Steer - 4WD x 2WS

• Tyres Spec/Type - 27×10.5-15 Foam-filled RT non-marking tires

Power

Power source(optional)

18.4Kw/3000rpm/ 3TNV80F-NXDSI/ Yanmar// EU stage V、EPA Tier 4F

18.2 kW/3000 rpm/ D1105-EF02_CN4/Kubota//EU stage V、EPA Tier 4F

• Auxiliary Power Unit - 12 V DC

• Fuel Tank Capacity-Diesel - 38L (8.4 gal (UK)/10 gal (US))

• Hydraulic Tank Capacity - 78L (17.2 gal (UK)/20.6 gal (US))

• Weight - 4,990 kg (11,001 lbs)

• Standards Compliance - CE/ANSI/CSA/AS


PRODUCT BROCHURE
