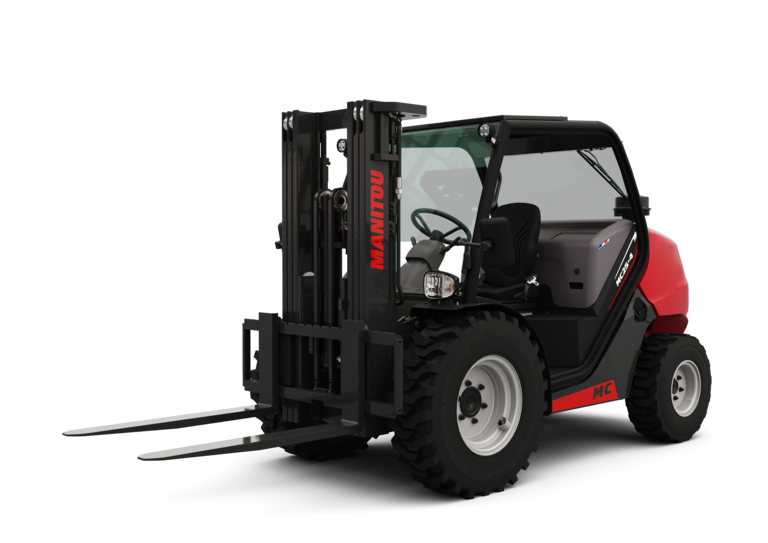

Forklift Buggy Rough Terrain MC 25-4 ST5
Product Details
Weight:
2 500.00 kg
MC 25-4 ST5
5500 mm
2500 kg
3405 mm Turning
500 mm Load
Discover the performance of the MC 25-4 Manitou, the world's best-selling compact all-terrain forklift. Offering an excellent crossing capacity, this particularly compact model is the machine you need to handle heavy loads (up to 2500 kg), even in the most confined areas of your operation or construction site. Its buggy version and its free lift triplex mast allow an overall height of less than 2m to work in basements and containers. The MC trucks designed by Manitou have a large ground clearance, an oscillating rear axle and a mast directly attached to the chassis. Optimize your transport and loading operations whatever your environment!
Technical characteristics
Manufacturer
ManitouModel Name
MC 25-4 ST5Power source
DieselOperator type
SeatedMax. capacity
2500 kgLoad center of gravity
500 mmLoad distance, centre of drive axle to fork
621 mmWheelbase
1900 mmWeight
Standard mast reference of the machine
FVD 33Service weight
4290 kgWeight on front axle (laden) / rear axle (laden)
5970 kg / 820 kgWeight on front axle (Unladen) / rear axle (Unladen)
1780 kg / 2510 kgDimensions
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version)
2155 mm / 1990 mmSeat height/stand height
1094 mmOverall length
4195 mmLength to face of forks
3045 mmOverall width
1450 mmForks section x width x length
40 mm x 100 mm / 1200 mmFork carriage ISO 2328 (class/form) A/B
2AFork carriage width
1260 mmGround clearance below mast
300 mmGround clearance at centre of wheelbase
310 mmTurning radius
3405 mmbottom of page
