OPERATIONAL DATA
| Operating Weight - Without Safety Frame | 935 kg |
| Digging Force - Bucket | 8.9 kN |
| Digging Force - Stick | 4.5 kN |
| Operating Weight - With Safety Frame | 985 kg |
top of page
CAT 300.9D (1T) Mini Excavator - (#EM007)
Product Details
Weight:
985.00 kg
PRICE MATCH GUARANTEE
4 HOUR RATE
24 HOUR RATE
7 DAY RATE
$275 + Trailer
$295 + Trailer
$1200 ($171 per day) + Trailer
Price includes GST
Customers will be contacted on completion of online booking to confirm availability.
Please Note:- Delivery and /or Pick Up can be arranged for an extra Fee. Call 1800 776 447
ITEMS INCLUDED
- 1T MINI EXCAVATOR
- TRAILER + $25.00
- 250mm BUCKET
- 370mm BUCKET
- 700mm BUCKET
ITEMS EXCLUDED
- FUEL COSTS
- CLEANING FEES
- ANY DAMAGE CHARGES
- DELIVERY / PICK UP COSTS
EXTRA ITEMS AVAILABLE ON REQUEST
- HAMMER/BREAKER ATTACHMENT
| Terms & Conditions *All Excavators require a $400.00 Security Bond *Security Bond will Refunded on completion of Hire, after Excavator has been inspected and No Damage has occurred *Charges will apply for all damages to equipment/vehicles *All Excavators must be refueled on return *Cleaning Fee may apply if Excavator is returned in an unsatisfactory condition |

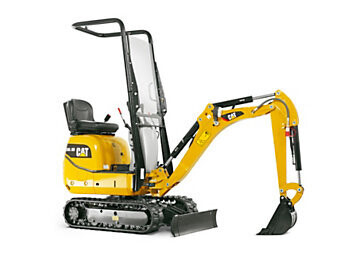

CAT 300.9D Mini Excavator - (#EM007)
Compact Size for Tight Jobs
The Cat 300.9D Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
The Cat 300.9D Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
Benefits
Compact
Work in tight areas
Work in tight areas
Easy to Use
Simple controls for easy operation
Simple controls for easy operation
Versatile
Range of attachments for a variety of applications
PRODUCT SPECIFICATIONS FOR 300.9
ENGINE
| Net Power | 9.6 kW |
| Engine Model | Yanmar 31NV70 |
| Rated Speed | 2100 r/min |
| Maximum Engine Output | 13.7 kW |
| Gross Power - ISO 14396 | 13.7 kW |
| Diesel Tank Volume | 10 l |
| Displacement | 854 cm³ |
| Flywheel Output ISO | 9.6 kW |
| Battery | 12 V, 20 Amp |
| Type | Water cooled model 3-cylinder diesel engine |
| Make/Type | Yanmar 31NV70 |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
WEIGHTS
| Operating Weight | 935 kg |
| Operating Weight - Without Safety Frame | 935 kg |
| Operating Weight - With Safety Frame | 985 kg |
DIMENSIONS
| Dig Depth | 1731 mm |
| Undercarriage Width - Extended | 864 mm |
| Width | 730 mm |
| Height - With ROPS Safety Frame Folded Down | 1507 mm |
| Maximum Dump Height | 2035 mm |
| Maximum Dozer Lift Height | 197 mm |
| Length - Undercarriage | 1220 mm |
| Maximum Vertical Dig Depth | 1349 mm |
| Minimum Front Linkage Swing Radius | 1150 mm |
| Boom Swing Angle - Left | 55 ° |
| Undercarriage Width - Retracted | 711 mm |
| Boom Swing Angle - Right | 56 ° |
| Maximum Reach | 3074 mm |
| Maximum Reach - Ground Level | 3023 mm |
| Transport Length - Arm Lowered | 2746 mm |
| Track Width | 180 mm |
| Tail Swing Radius | 736 mm |
| Maximum Dozer Dig Depth | 174 mm |
| Maximum Dig Height | 2863 mm |
| Height - With ROPS Safety Frame Unfolded | 2276 mm |
HYDRAULIC SYSTEM
| Pumps | 2 gear pumps |
| Discharge Capacity | 11.4 + 11.4 L/min (3 + 3 gal/min) |
| Operating Pressure for the Work and Travel Hydraulics | 170 bar |
| Operating Pressure Pivot | 70 bar |
| Hydraulic Tank Capacity | 14 l |
CHASSIS AND SWIVEL GEAR
| Gradeability | 30°/58% |
| Travel Speed | 1.8 km/h |
| Track Width | 180 mm |
| Ground Clearance | 127 mm |
| Ground Pressure | 0.25 kg/cm² |
| Machine Swing Speed | 8 r/min |
| Number of Rollers - Each Side | 2 |
OPERATING SPECIFICATIONS
| Stick Length - Standard | 890 mm |
| Machine Overhang | 318 mm |
DOZER BLADE
| Height | 200 mm |
| Dig Depth | 174 mm |
| Width | 700 mm |
| Lift Height | 197 mm |
NOISE EMISSIONS
| Sound Power Level (LWA) (to 2000/14/EG) | 93 dB(A) |
